Product Name: M3

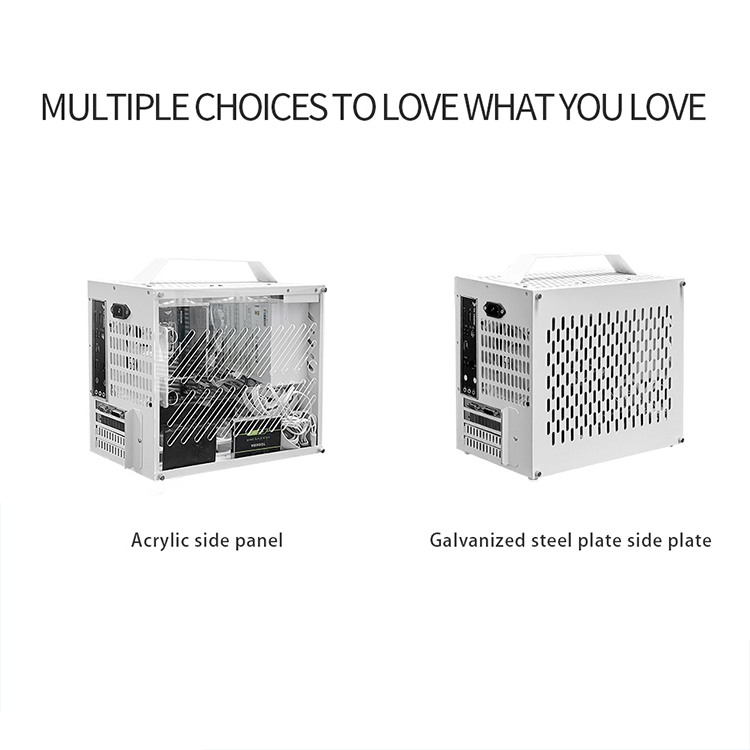

Drawing numbers: QM-Z36-MATXO3A (white galvanized steel plate), QM-Z36-KATXO4A (acrylic panel)

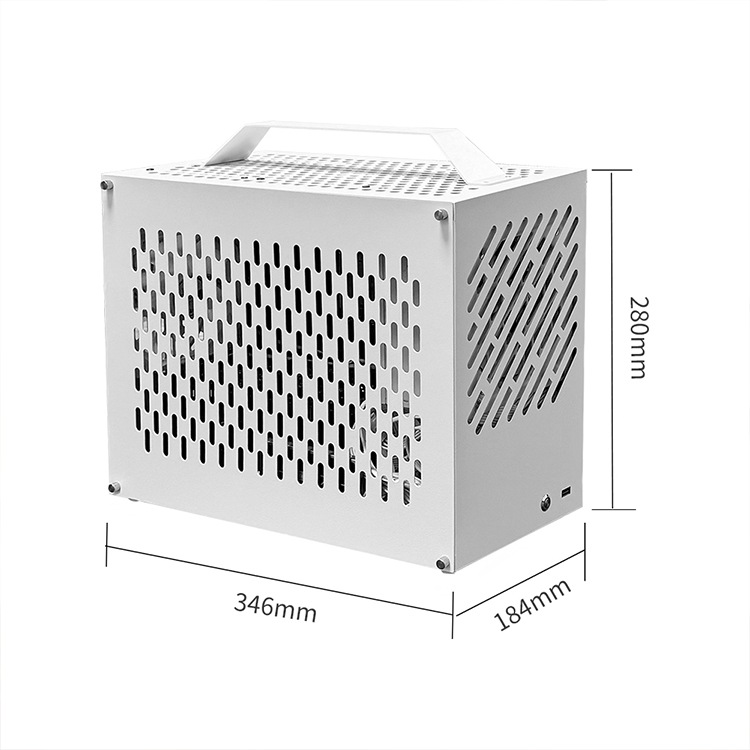

Case size: 346 * 280 * 184mm

Volume: 17L

Material: Galvanized steel plate 0.8mm

Weight: 1.79kg

Surface treatment method: spray coating

Motherboard: ITX (170 * 170mm), ITX (170 * 190mm), M-ATX (244 * 244mm)

Power supply: SFX power supply (full height graphics card within 330mm), ATX power supply (full height graphics card within 245mm)

Hard drive slots: 4 2.5-inch hard drive slots

Graphics card: Full height graphics card up to 245mm/330mm

CPU heat sink: within 160mm

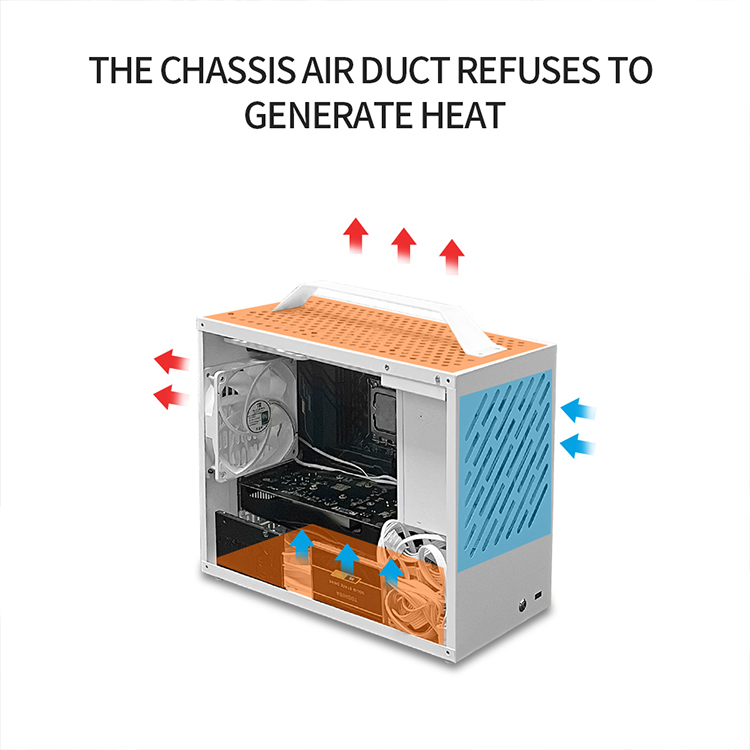

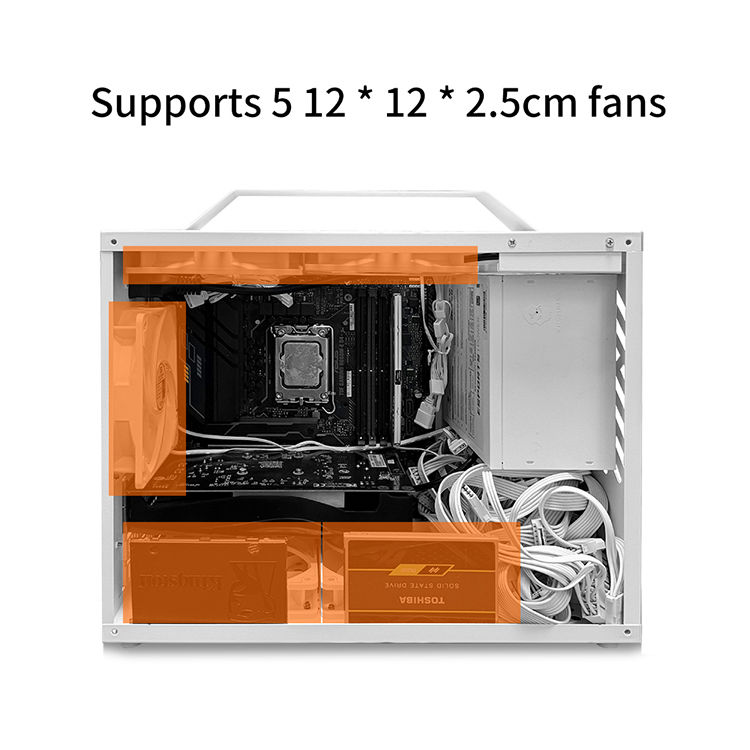

Auxiliary cooling fan: Top 2 12 * 12 * 2.5cm fans

Rear panel: 1 12 * 12 * 2.5cm fan, bottom -2 12 * 12 * 2.5cm fans (can be installed with graphics card thickness of 4cm up to 330mm without fans)

Shipping list: chassis shell, handle, 12AT switch wire, USB 3.0, screw pack (universal screws can be used to fix the motherboard, etc.);
