Product layout display:

Basic product information

Name: All-aluminum small chassis 4th generation (only for shell), description: This chassis supports front US (2 USB3.0, audio interface)
Model: GEM-Z018-ITXO4A (white - aluminum alloy), GEM-Z018-ITXO5A (white - galvanized steel plate)

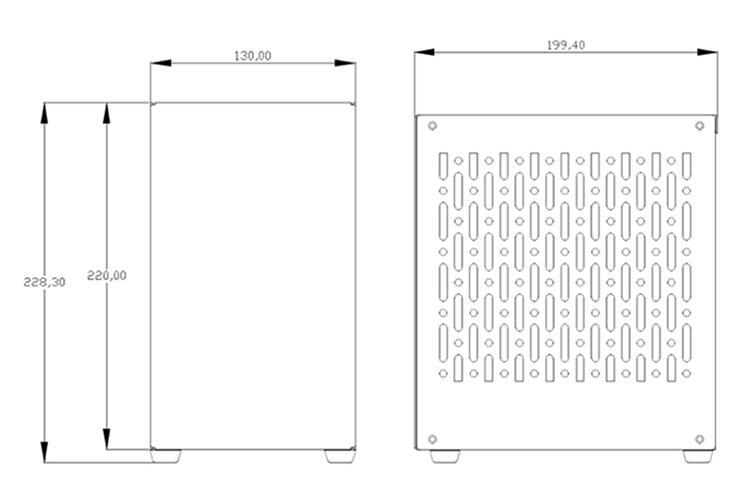

Size: 199.4mm * 130mm * 220mm (excluding foot pad), 199.4mm * 130mm * 228.3mm (including foot pad)
Color: matte black, ivory white, cherry blossom powder, apple green, space silver, deep space grey
Material: GEM-Z018-ITXO4A: aluminum alloy 1.5mm, GEM-Z018-ITX05A: galvanized steel sheet 1.2mm
Weight: GEM-Z018-ITXO4A: 0.95kg, GEM-Z018-ITX05A: 1.965g
Motherboard: only support (including support for Inter or AMD) ITX motherboards, not ATX, M-ATX and other motherboards larger than ITX specifications
Heat sink: down-press CPU heat sink, supporting CPU heat sink with height less than 75mm
Hard disk: SSDs (up to 2) supporting common standard SATA3.0 interface SSDs are compatible, mechanical hard disk 2.5-inch (up to 2) supporting common 1T notebook hard disk (2.5-inch) or 2.5-inch mechanical hard disk with thickness less than 10mm, mechanical hard disk 3.5-inch (up to 2) supporting common 3.5-inch mechanical hard disk (1T-8T), supporting three hard disk bits, and adapting to NAS solution
Power supply: 1U power supply (size: 15x8x4.2cm) Power supply depends on CPU power consumption and graphics card power consumption. Empirical formula: motherboard equivalent power consumption 10oW+CPU power consumption+graphics card power consumption
Switch: 16mm diameter self-reset button switch, supporting 16mm color lamp or self-reset button switch without lamp
Auxiliary cooling: 6cm fan, supporting 60 * 60 fan, thickness within 30mm
Shipping list: shell, left/right board, rear panel main board bracket, hard disk bracket, foot pad, screw (one package)
Other: If you need to customize other module shells, please contact customer service for customization.

Two materials and six colors
